Progressive Commercial: “Coverage Checker Goggles”
CGI Prop for a National Commercial



Concept

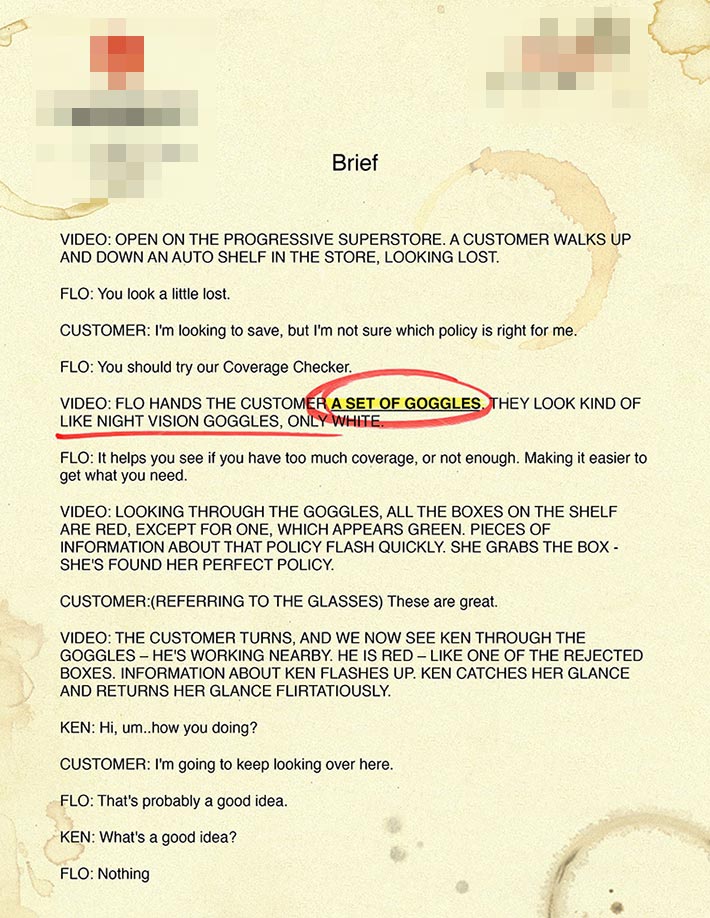

I was hired to (quickly!) model a night vision goggle-like prop for a Progressive commercial. This was the fastest model I’ve made, adding to the fact that I went through three versions in two weeks. It all started with a Brief:

ProgressiveGoggles_Brief_IMAGE



Designs
I then got some design(s) from the vendor.

They started with these:

ProgressiveGoggles_DesignsV1_IMAGE

Then the design was changed to these:

ProgressiveGoggles_DesignsV2_IMAGE

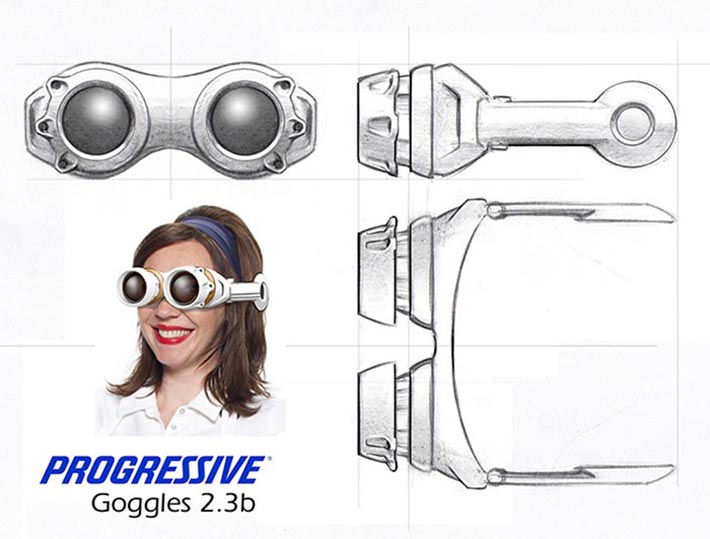

And finally they settled for this Design:

ProgressiveGoggles_FinalDesign_IMAGE



Modeling
Here’s my process:

I started blocking the shape with some basic orthographic NURBs curves in Maya, which I then lofted, extruded and converted to Polygons:

ProgressiveGoggles_NURBSCurves_IMAGE

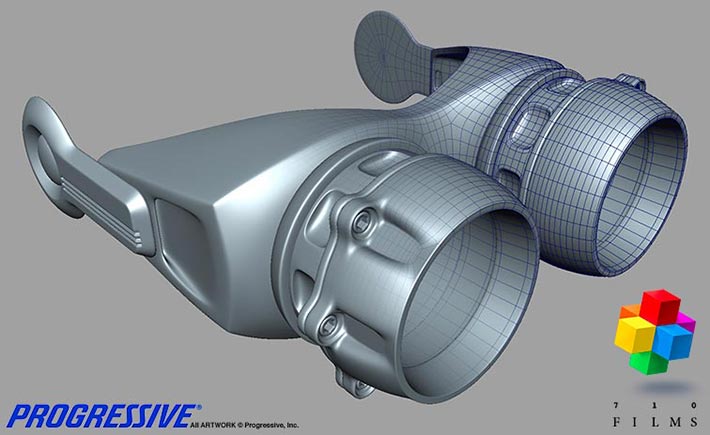

Here’s the final approved model:

ProgressiveGoggles_FinalModel_IMAGE

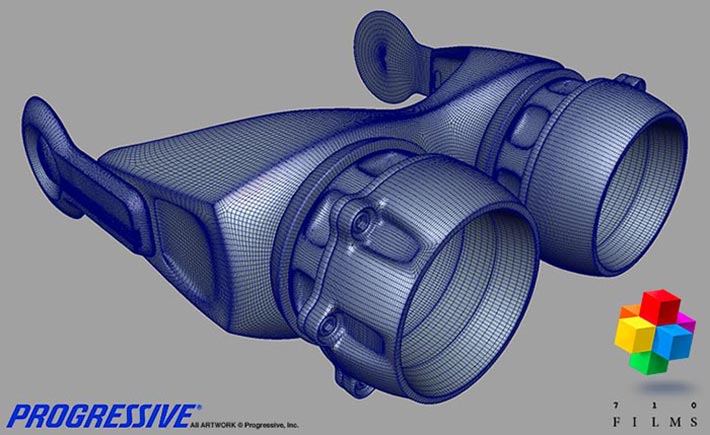

Then, time for Prototyping, I increased the resolution of the mesh to make the “triangulation of the Polygons denser”:

ProgressiveGoggles_DenseGeometry_IMAGE

As for how I exported this model, I created a step-by-step tutorial here: http://www.710films.com/TutorialsTips/CG/RapidPrototyping/RapidPrototyping.html

And here’s the final model fabricated by the guys over at 3Dmass (http://www.3dmass.com):

ProgressiveGoggles_FINAL_Banner

(Click on the image to see a larger version of the final piece!)



The Final Commercial!
And here’s what the goggles looked like on the commercial:

Progressive_Goggles_Movie_BANNER

Voila!


Cheers!
